3-30-2014

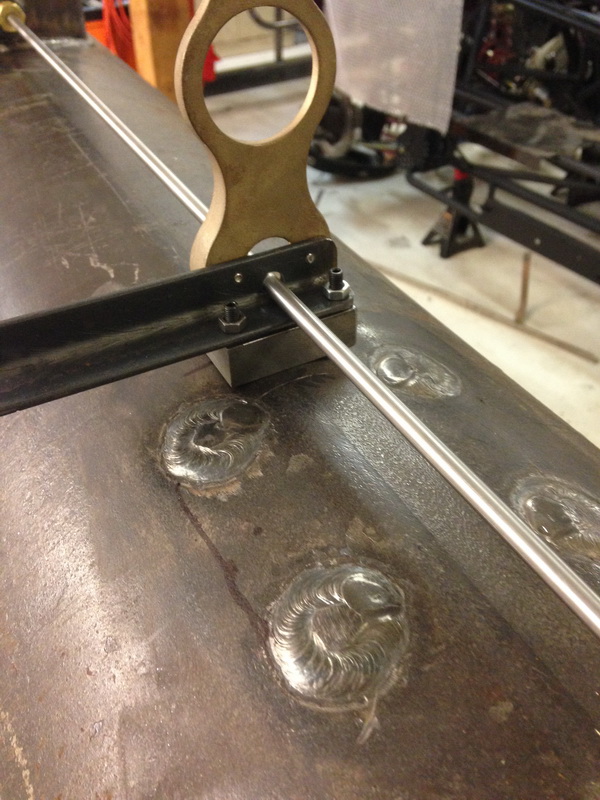

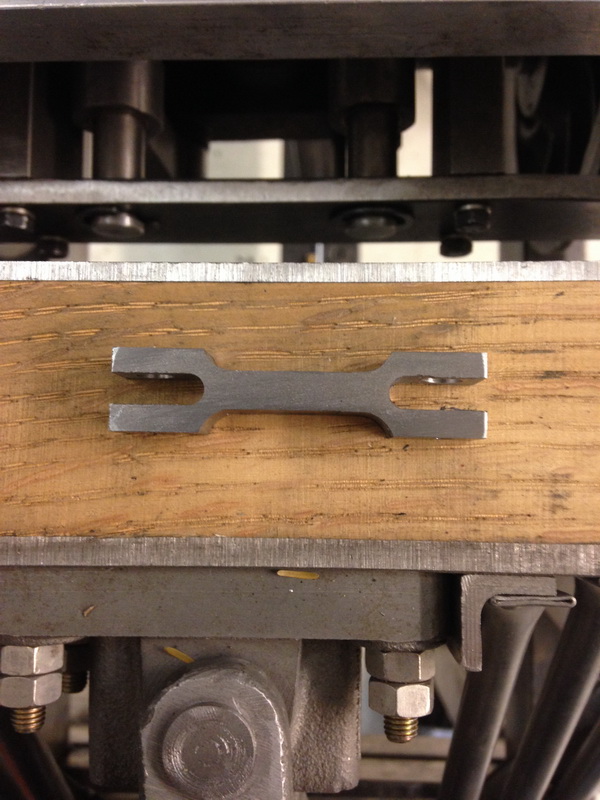

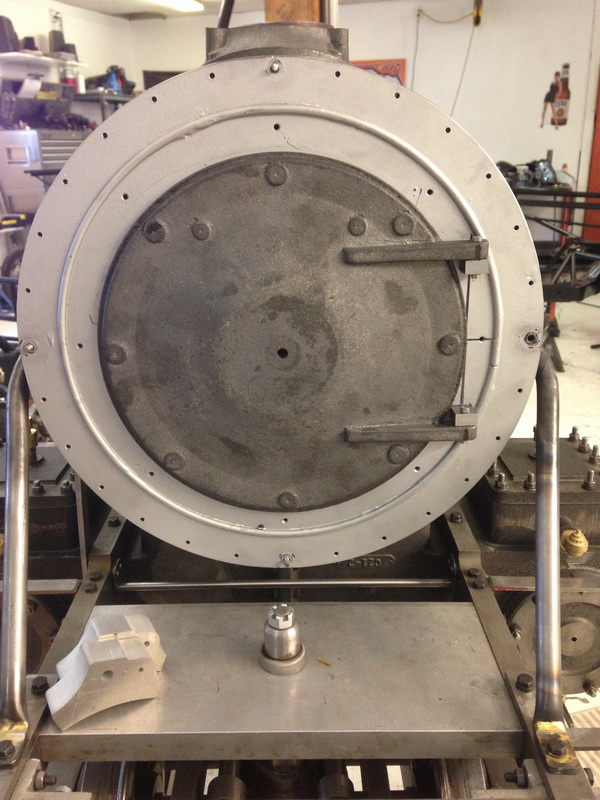

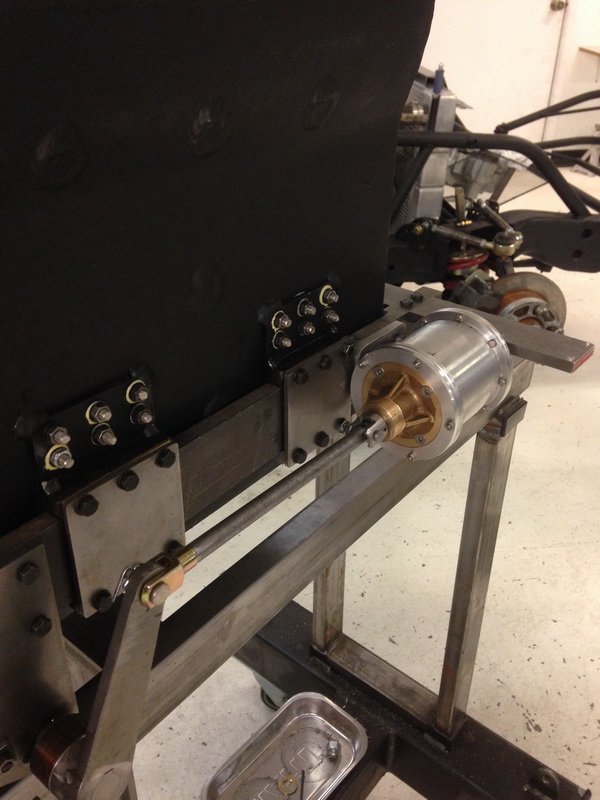

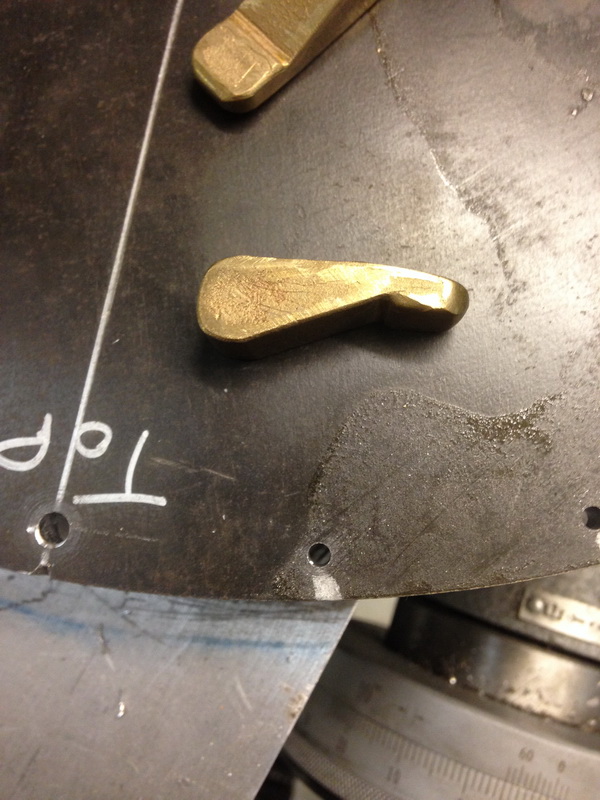

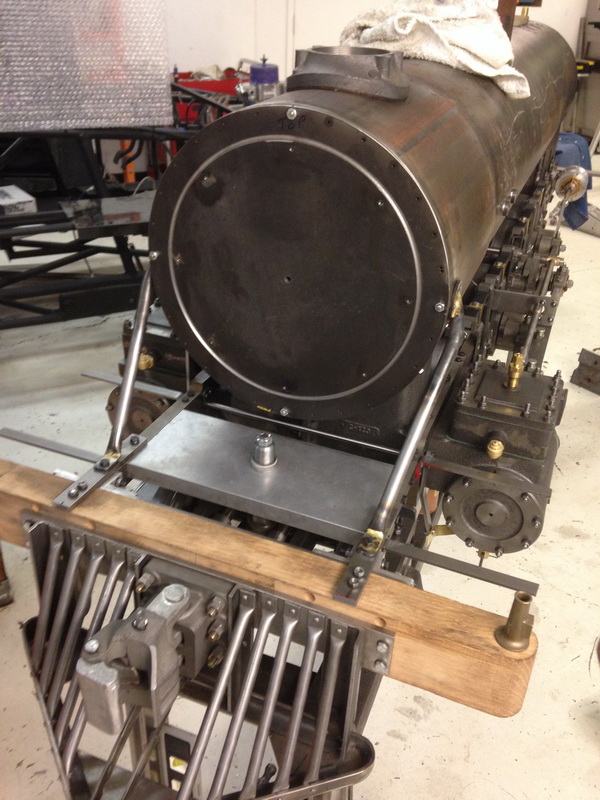

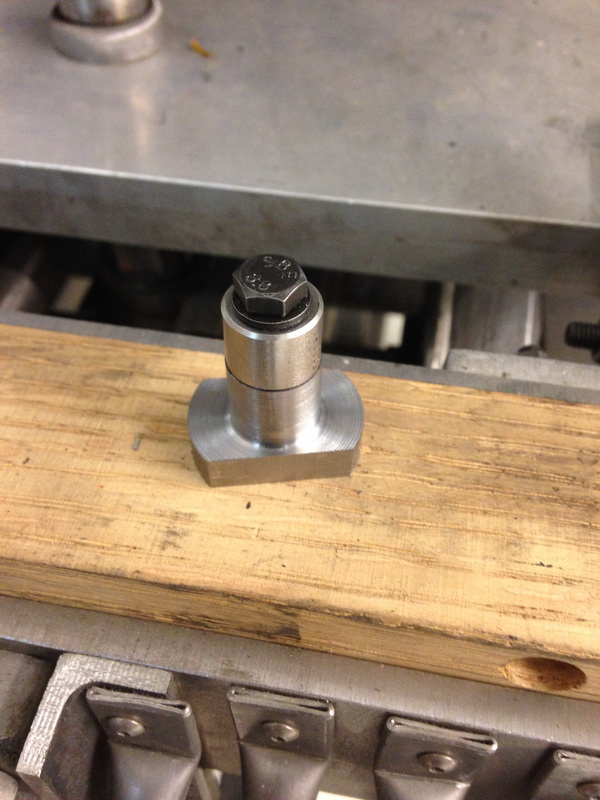

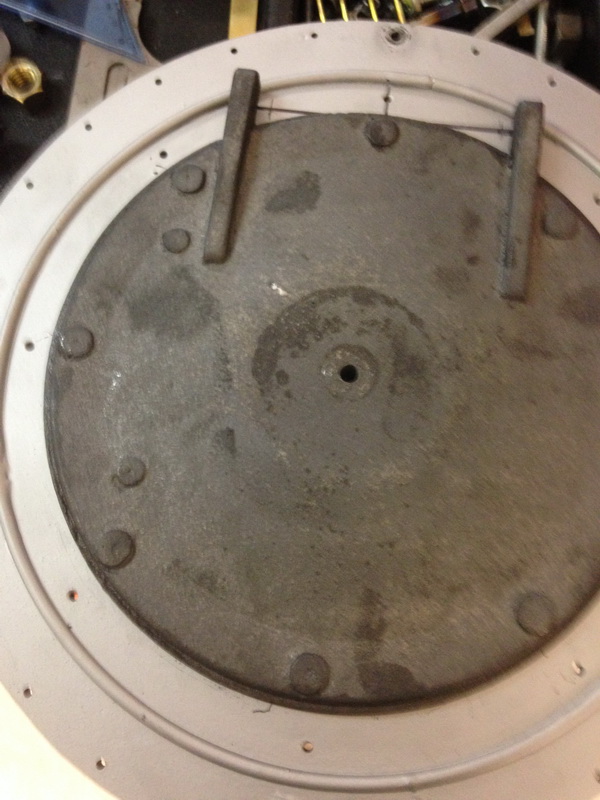

GOT THE START OF THE THROTTLE IN THE CAB,  I HAVE STARTED THE PIVOT LINK.   I BUILD THE PIVOT FOR THE JOHNSON BAR AND WELDED THAT ON THE BOILER.  I ALSO HAVE BEEN WORKING ON THE SMOKE BOX DOOR I HAVE IT ALL MACHINED UP AND SEMI MOUNTED IT IS A TAD OFF IN THIS PIC.  I HAVE TO MAKE SOME DOOR DOGS FOR THIS  I DON'T HAVE THE CORRECT ONES FOR C-21.

3-27-2014

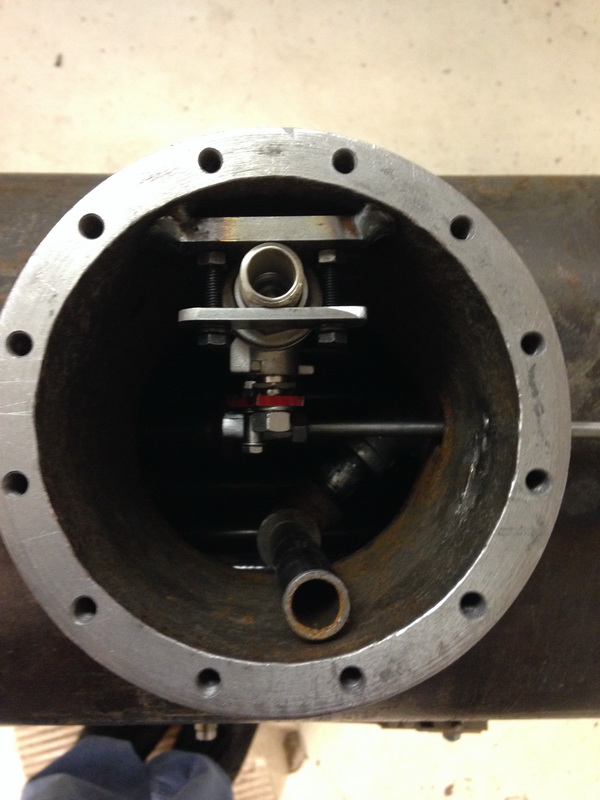

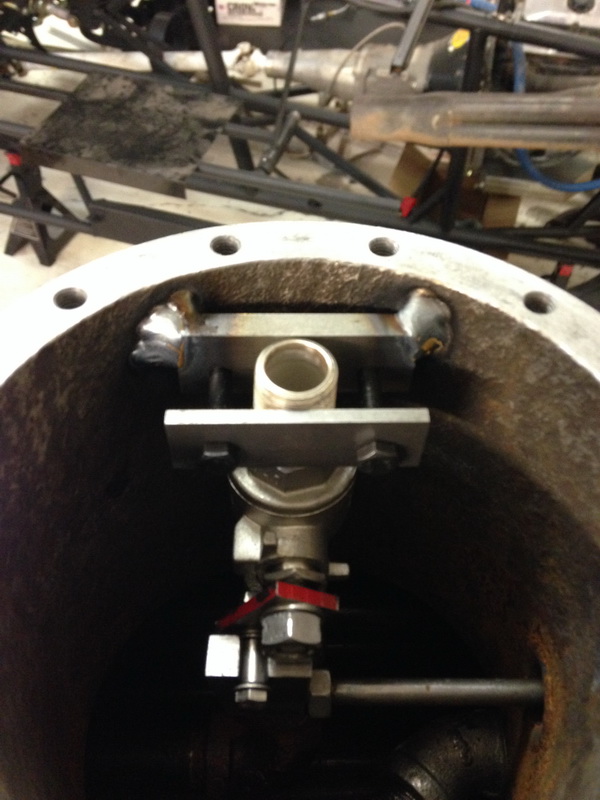

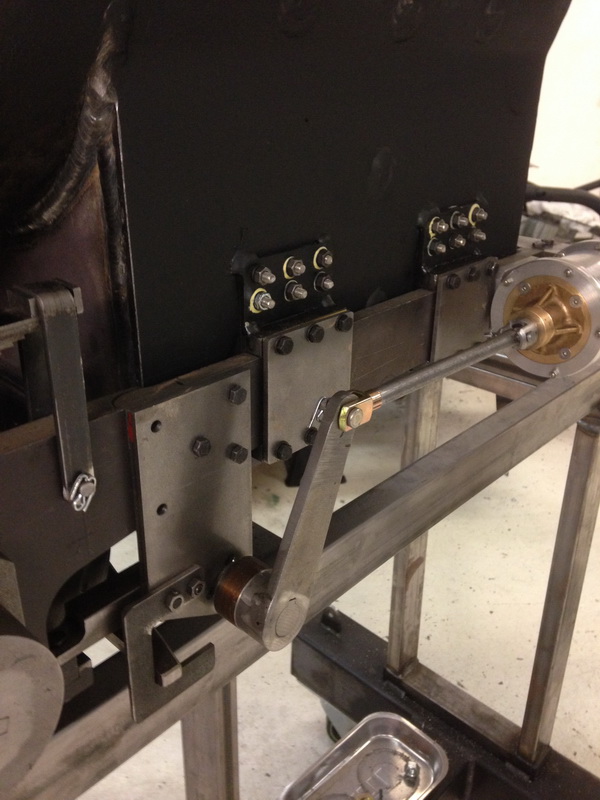

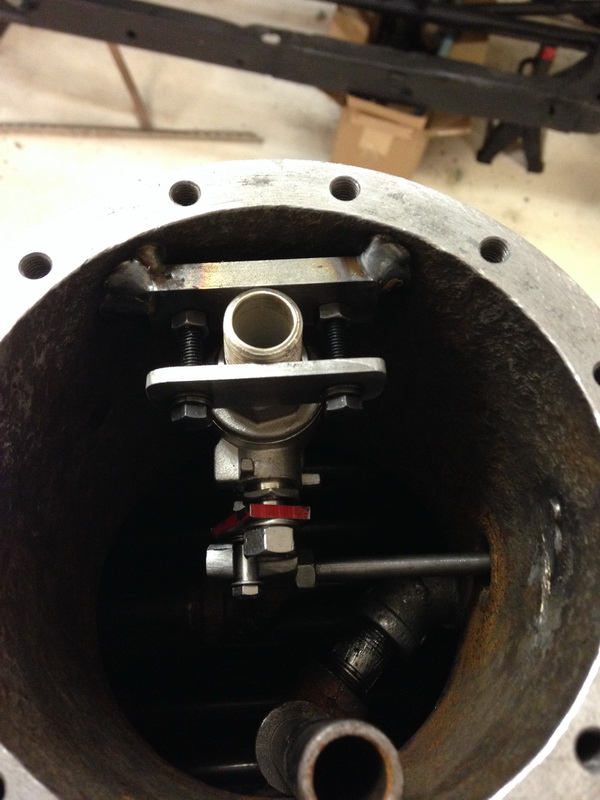

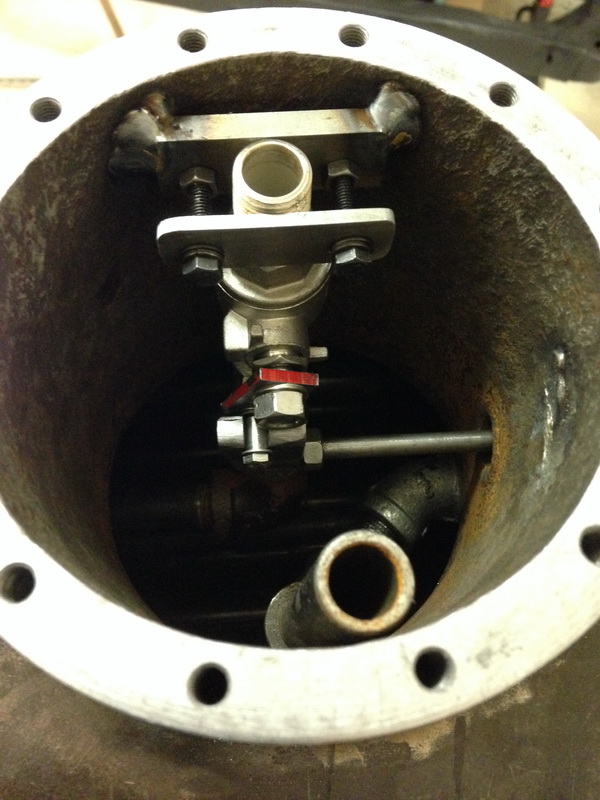

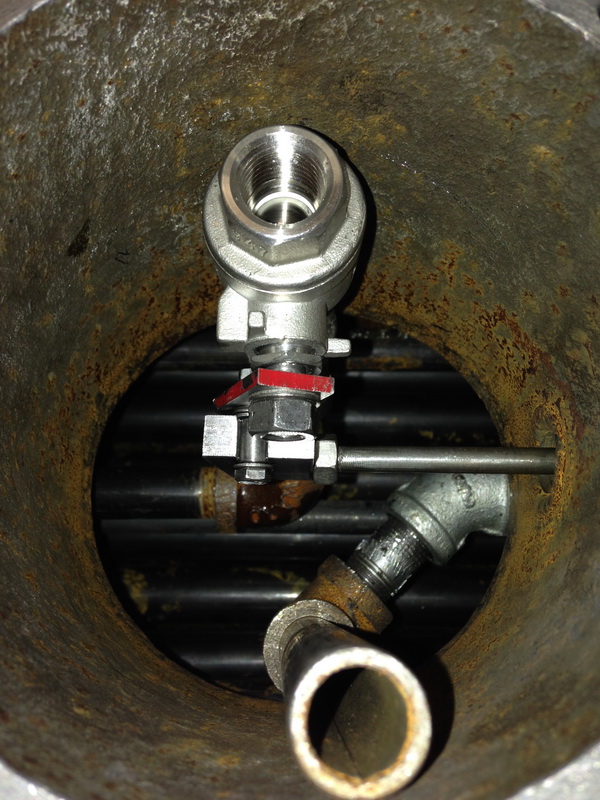

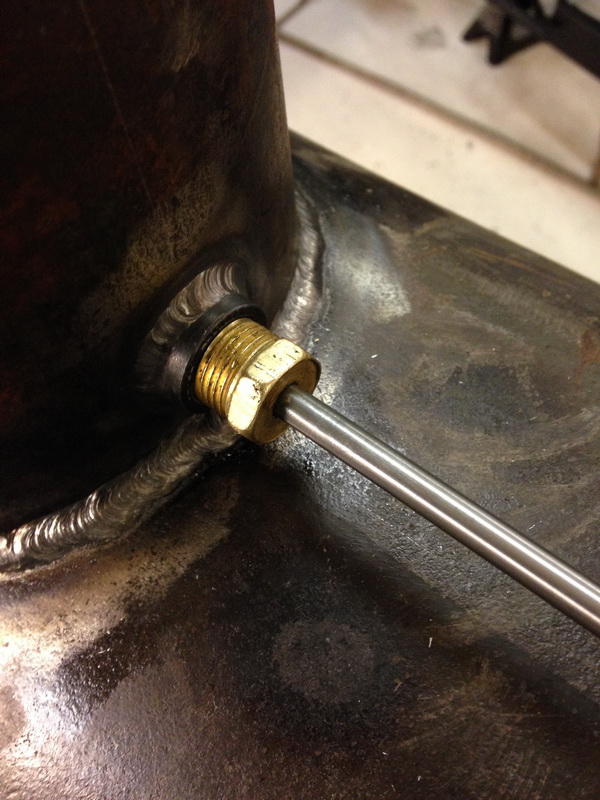

AFTER A COUPLE OF WEEKS PLAYING TRAINS I AM FINALLY BACK TO WORKING ON THE TRAIN AND GETTING A FEW SMALL THINGS BUTTONED UP AND THE THROTTLE WAS ONE OF THEM I FINALLY GOT IT ALL MOCKED UP AND WORKING.  NEXT I AM GOING TO BUILD THE THROTTLE FOR THE CAB AND THE JOHNSON BAR.  ONE STEP BEING CLOSER TO RUNNING HER.

3-6-2014

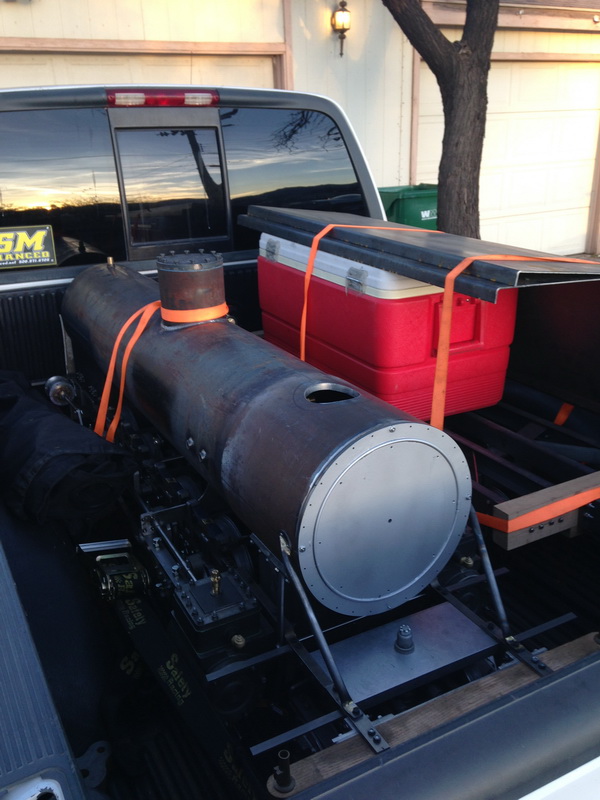

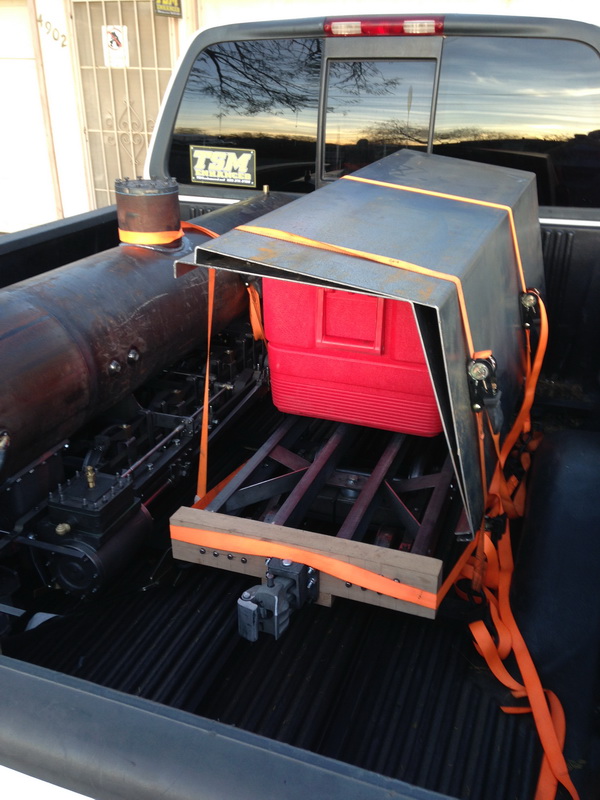

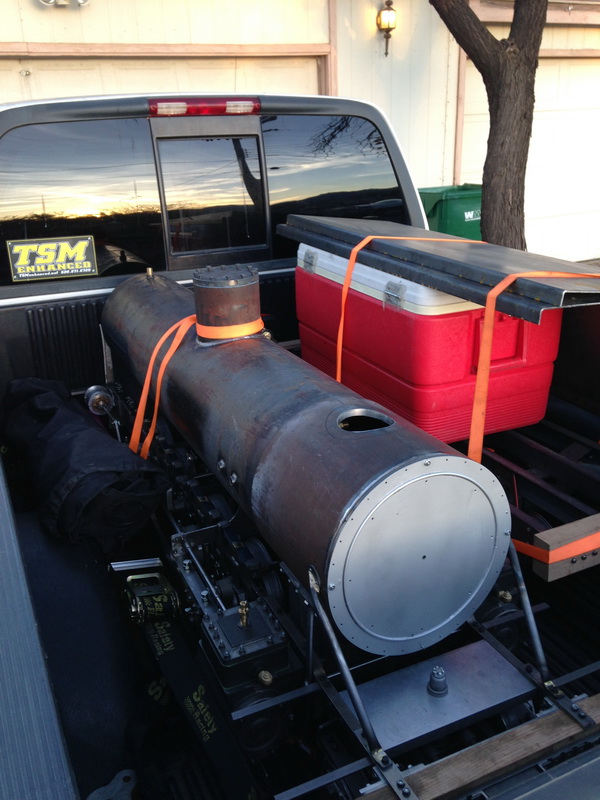

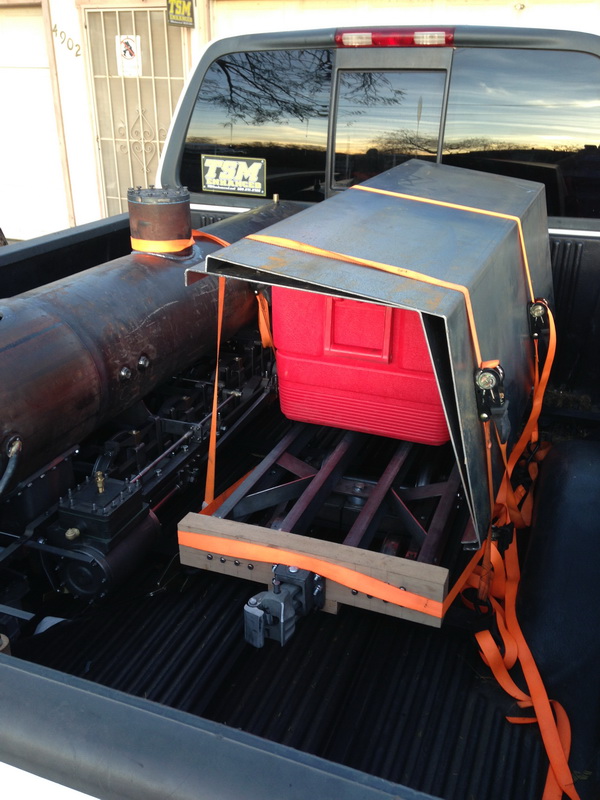

LOADED AND READY TO HEAD TO JTSRR FOR THE NARROW GAUGE MEET 2014.

3-5-2014

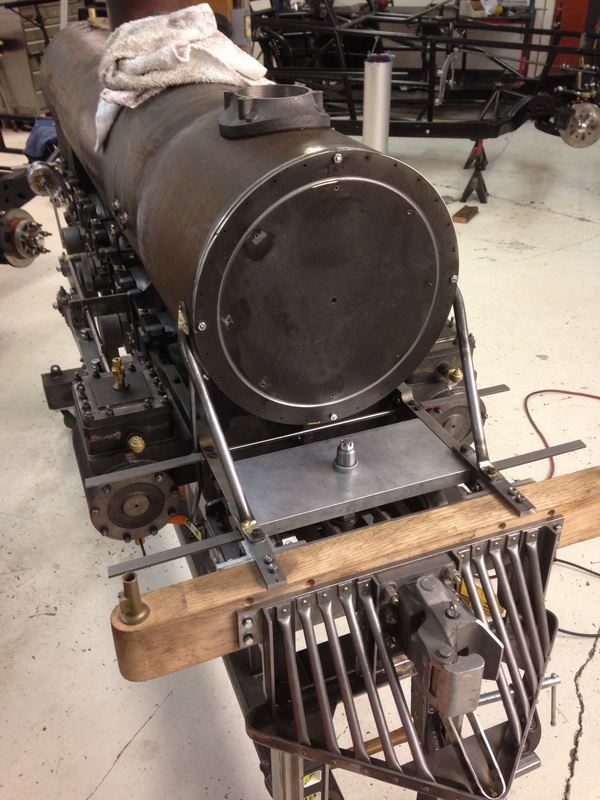

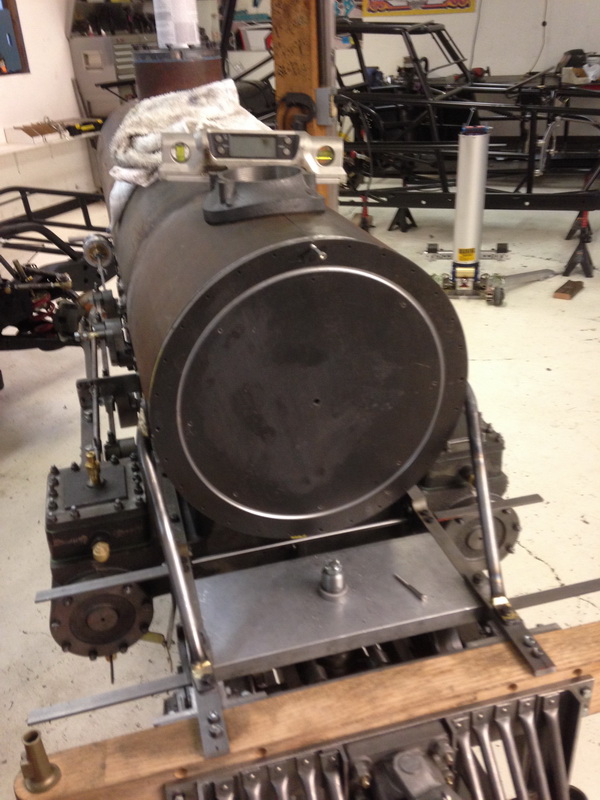

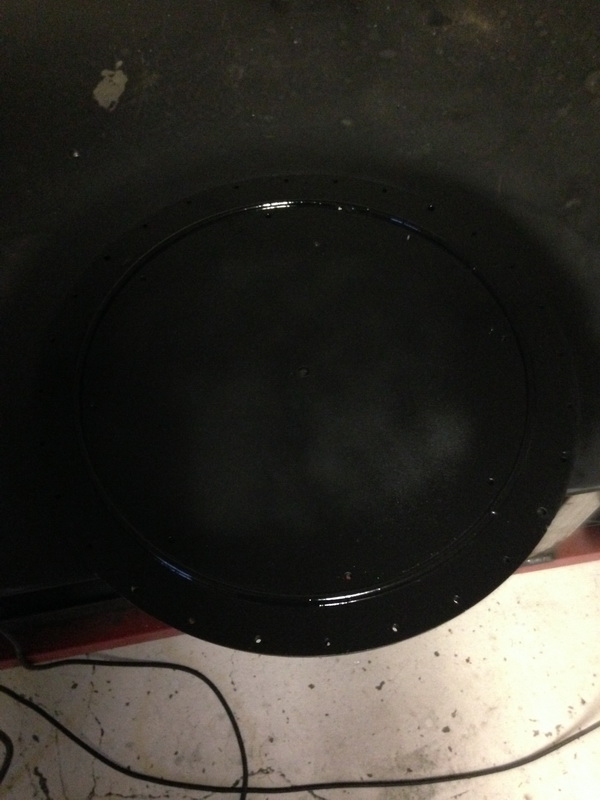

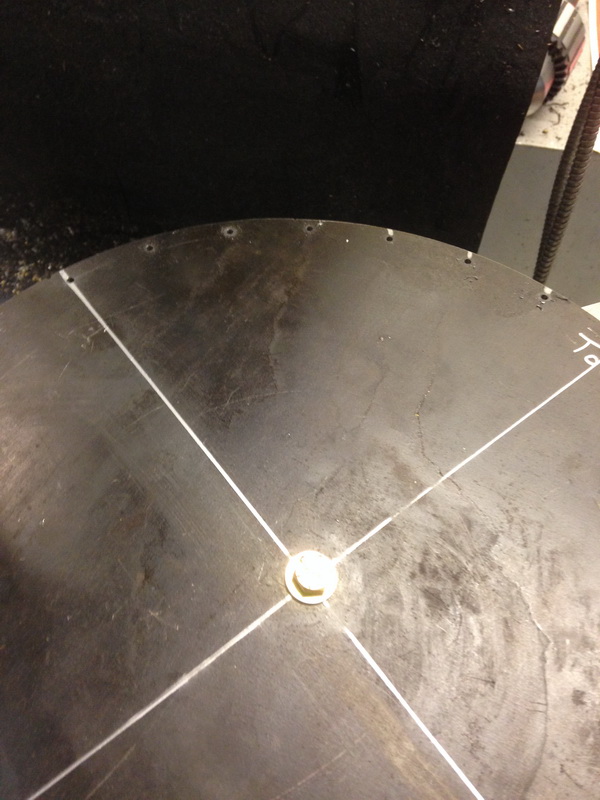

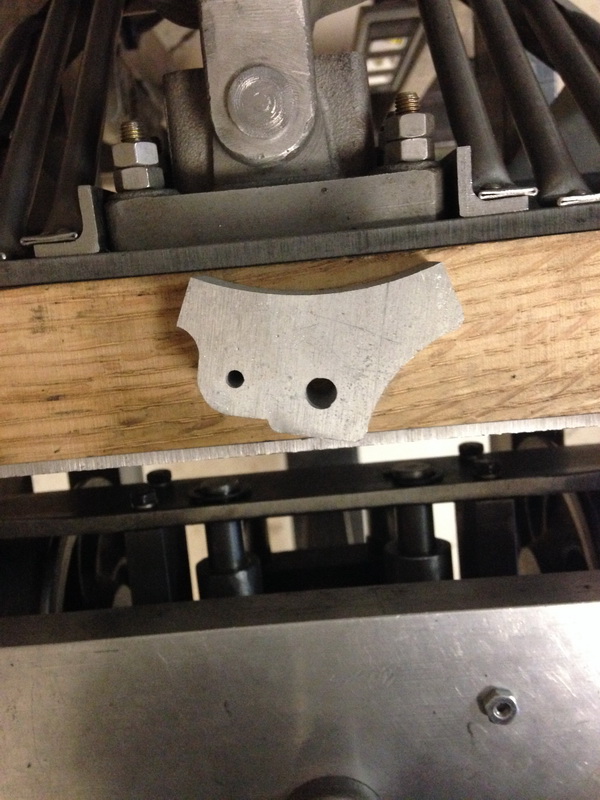

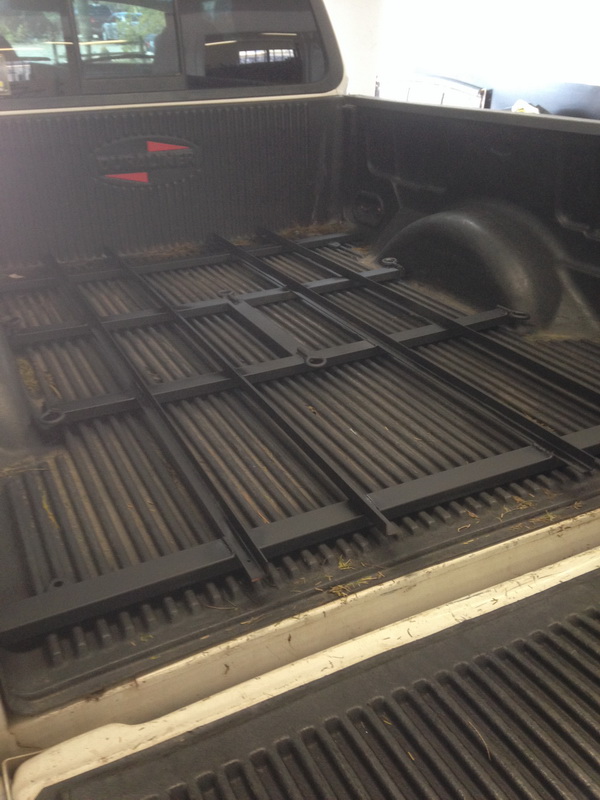

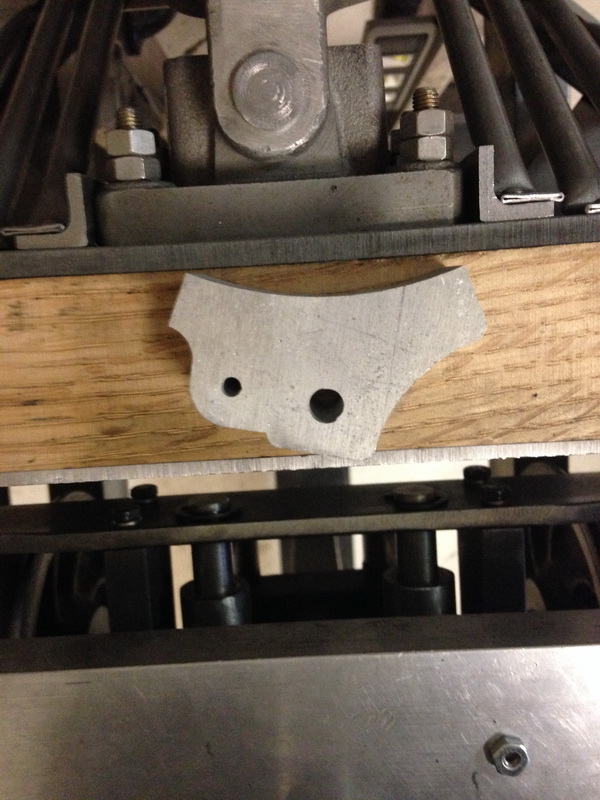

 NEW TRUCK RACK FOR THE TRAIN WITH ALL THE TIE DOWNS.  ALSO HAVE THE FRONT COVER ABOUT DONE WAIT FOR THE DOOR CASTING AND THEN CUT THE CENTER OUT.   THAT IS A PICTURE OF THE TENDER BRAKE SHOE.

3-1-2014

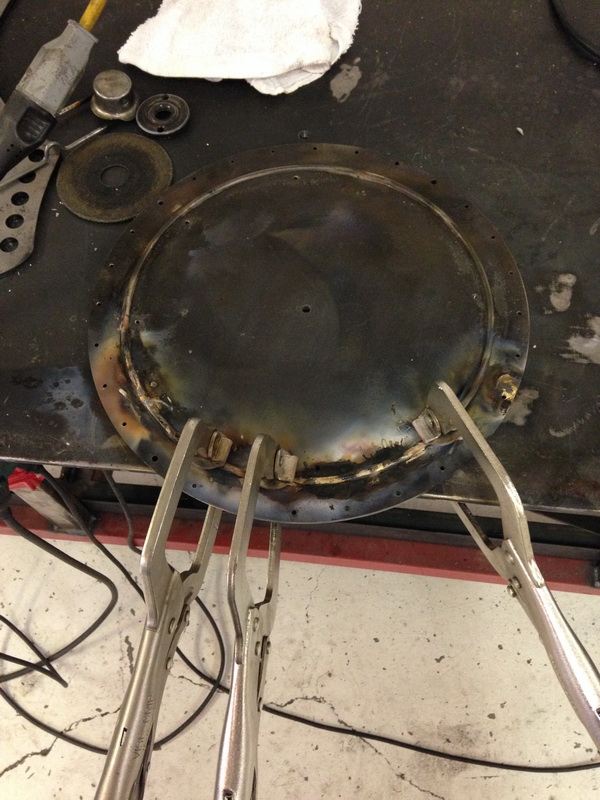

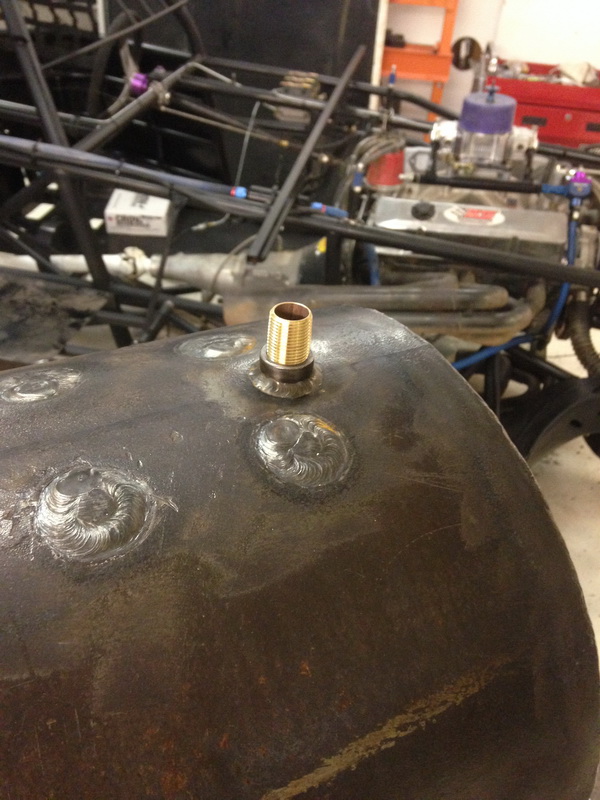

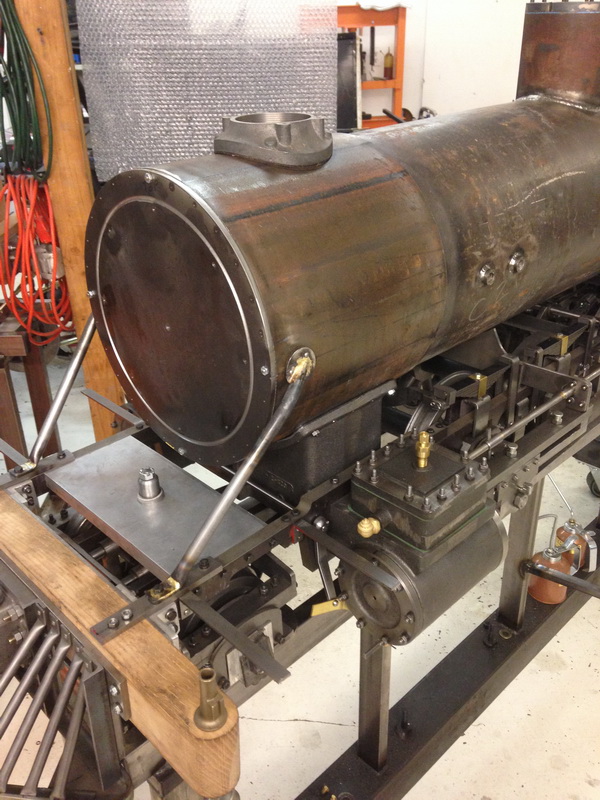

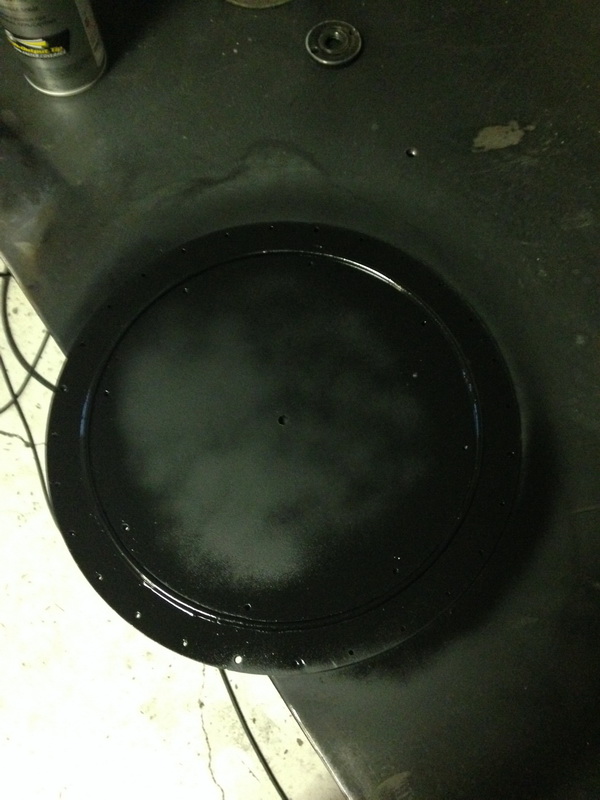

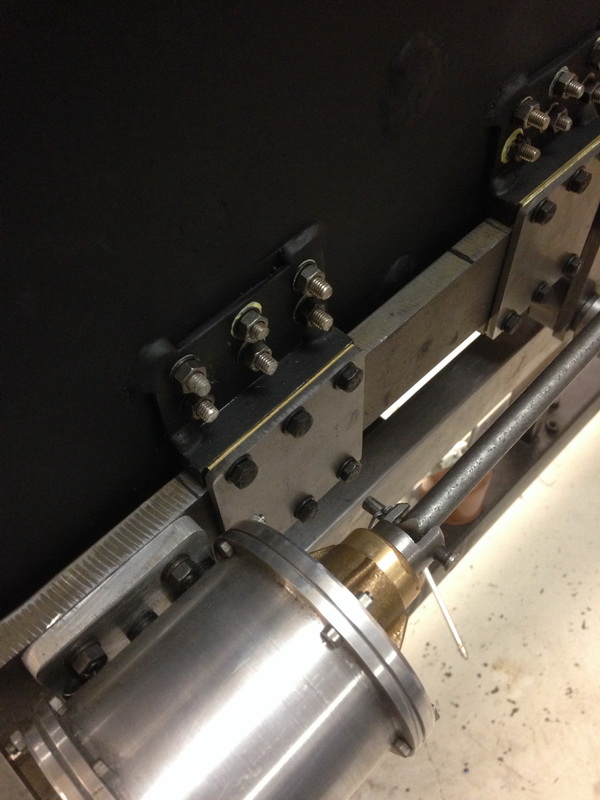

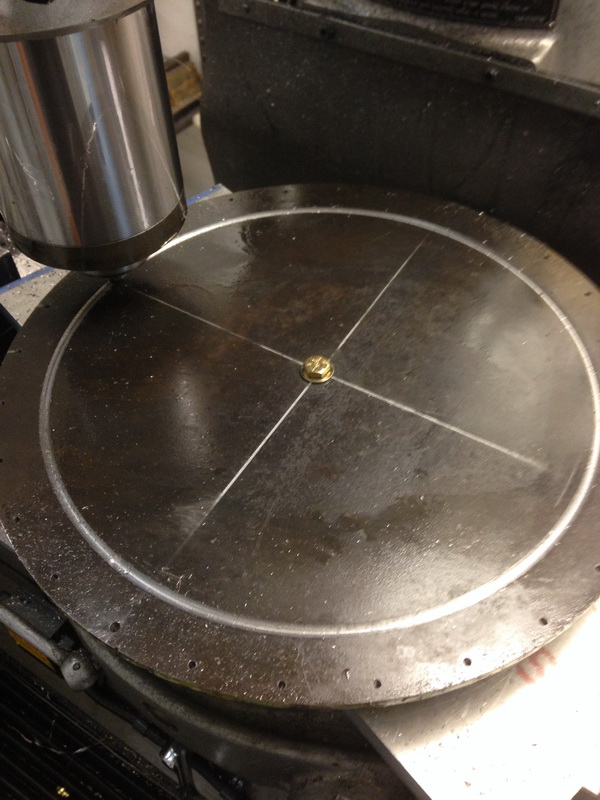

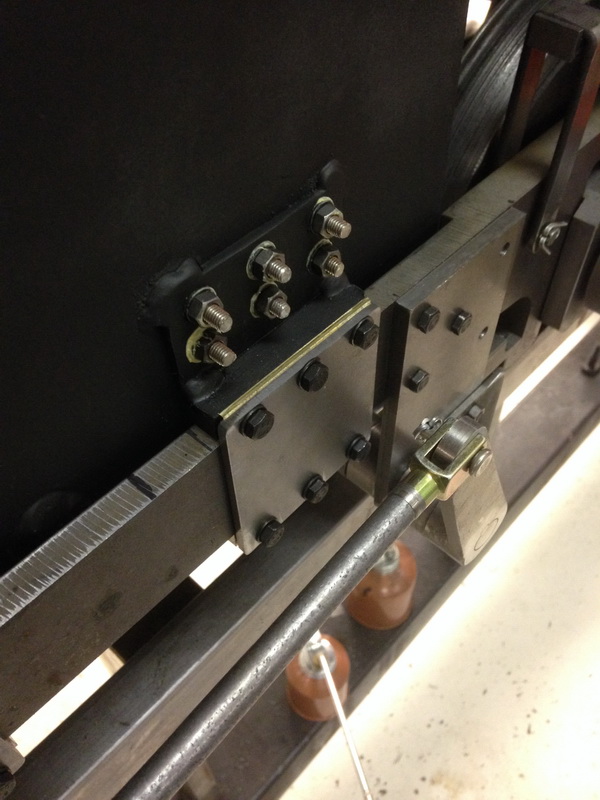

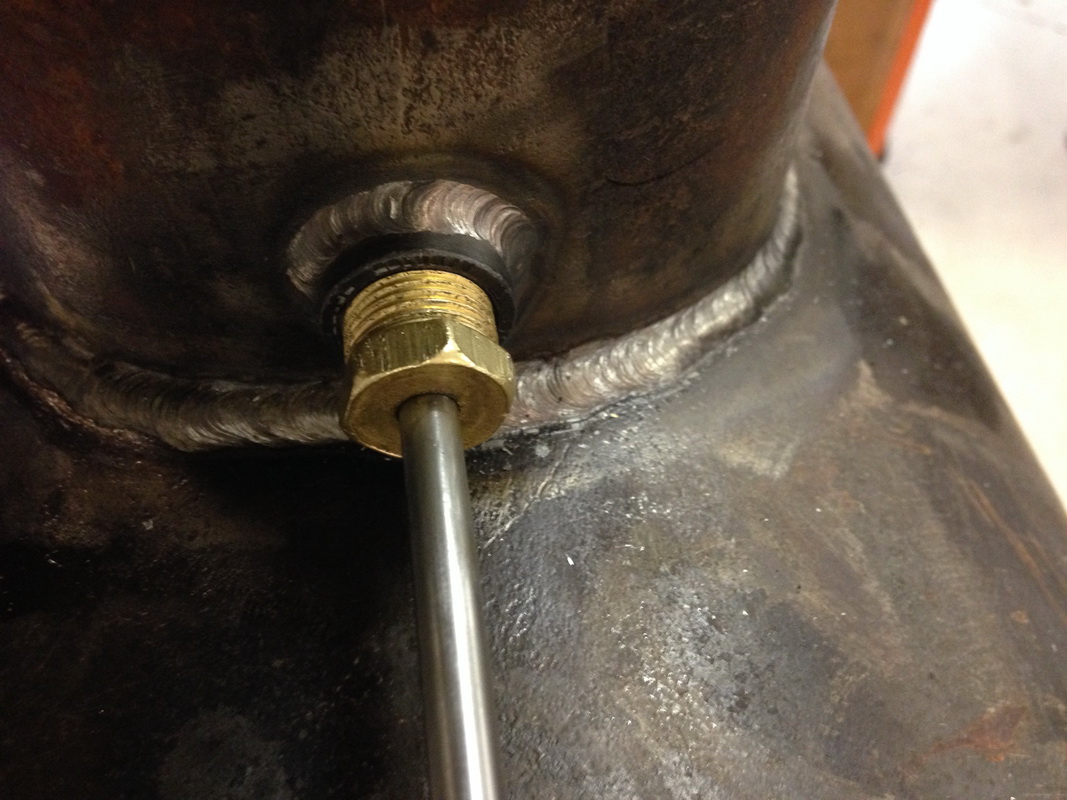

SMOKE BOX COVER IS STARTED AND ALL THE HOLES ARE DRILLED AND NOW TO TAP AND INSTALL THE HARDWARE.  BOILER PLATES ALL MADE AND INSTALLED.  I FINISHED UP THE SMOKE BOX BRAKE TUBES, INSTALLED THE 3/8 PIPE FOR THE TURRET.
